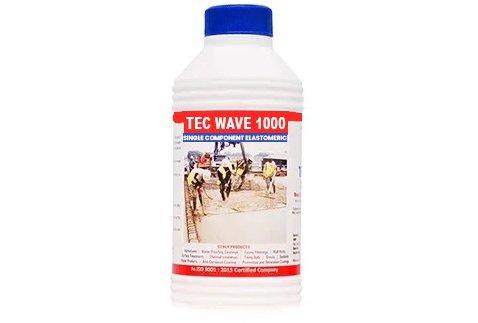

TEC WAVE 1000
TEC WAVE 1000
SINGLE COMPONENT ELASTOMERIC WATERPROOF COATING
KEY BENEFITS AND FEATURES
- Outstanding Compatibility with concrete and masonry
- Forms strong bond with the water proofed surface
- Forms a versatile membrane – single product solution for various waterproofing works.
- It is multipurpose & economical product, easy to use
- Prevents cracking by improving flexural strength
- Reduces drying & aging shrinkage cracks
- Can be used with most commonly available cements.
USAGE
- Ideally used for water proofing of roof terraces, sunken portions of toilets & bathrooms.
- Is very effective as damp proof coating for basements and below grade structures
DIRECTIONS FOR USE
Surface Preparation
The surface should be sound, free from dirt, oils andgreases. The surface to be bondedshould be thoroughly cleaned by wire brushing. Surface should be washed thoroughly to be free of fine dust. Incase of oil/ grease contamination the same should be
removed by thorough detergent washing followed bywashing with clean water. Very smooth surfaces should be roughened for key. For priming of concrete substrate, the surface should be thoroughly saturated with potable water. Remove any excess of water prior to application.
MIXING
Pour the content in a clean vessel. Add the same volume of water and mix to obtain a lump free and homogenous mix that can be applied by brush.
APPLICATION
Apply with brush two coats of the mix in a span of 4-6 hours on the prepared concrete substrate in short strokes. The second coat shall be applied perpendicular to the first when it has obtained tack free state. Two coats will result in an approximate DFT of 1mm.
POST APPLICATION
Curing is vital for optimum performance of the coatings. Curing should commence 24 hours after application and should continue for a minimum period of 7 days.
Technical Data
| Physical State | Grey Powder |
|---|---|
| Maturation time at 30°C | 20 minutes |
| Initial Cure | 24 hrs |
| Final Cure | 7 days |
| Flexural Strength after 28 days in N/mm2 | 7 |
| Compressive Strength after 28 days in N/mm2 | 25 |
| Tensile Strength after 28 days in N/mm2 | 3.7 |
| pH value | 7.4 |
| Coverage | 3- 3.5sqmtrs for single coat |
| DFT | 250 microns |
PRECAUTIONS
Storage and Shelf life
TECR WAVE 1000 must be store under cover, out of direct sunlight 1and protect from extremes of temperature. Shelf life is 12 months when stored as above. Failure to comply with the recommended storage conditions may result in premature deterioration of the product or packaging.
CLEANING
Tools and equipment’s should be cleaned with water when the mix is in uncured state. Cured mix can only be removed mechanically.
Packaging
Available in 1 and 25 Kgs
OTHER PRODUCTS
Techny manufactures lot more range of other products for construction and repair applications. They include admixtures for concrete, mortars, block making etc, waterproof and damp proof coating systems, Repair and rehabilitations products, Grouts and Anchors, Protective, Decorative and Corrosion prevention coatings, Epoxy Flooring systems, Industrial flooring systems and Tiling aids. For more details refer Separate Product brochures.
Every reasonable precaution is taken in the manufacture of the Techny products to ensure that they comply with high standards of quality. The recommendations and properties of the products are based upon what is believed to be the most reliable information available and are not intended as recommendations which infringe other patents. Although all Techny products are subject to rigid quality tests, no specific guarantee can be given, because results depend not only on quality but also on other factors beyond our control. We therefore welcome consultation in the event of doubt about application performance etc but do not accept any liability either directly or indirectly arising from the use of the products whether used as per its specifications or advice or otherwise. All transactions shall be subject to our terms of sale, delivery and payment. The leaflet supercedes the previous one and any new issue may take place without notice to supercede this edition as and when it becomes necessary.
TECHNICAL DATA SHEET
PUBLISHED – 01 AUGUST 2015
