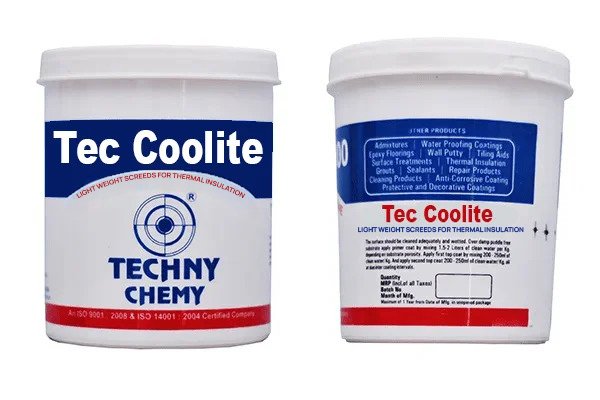

TEC COOLLITE
TEC COOLLITE
LIGHT WEIGHT SCREEDS FOR THERMAL INSULATION
KEY BENEFITS AND FEATURES
- High heat resistance
- Can be used on RCC roofs, Asbestos sheets
- 25 % more cooling than normal weathering course.
- Reduces dead load factor by 50 %
- Fire resistant
USAGE
- Suitable for floor and roof screeds where low weight and thermal insulation is requir
- Light weight filler material to be used for filling of sunken areas, roof tops etc.,
DIRECTIONS FOR USE
Recommended Thickness
For normal leveling purpose a minimum thickness of 30 mm can be provided for roof screeds. For thermal insulation roof screed minimum thickness of 75mm at the middle and 50 mm at the end has to be done to maintain the slope.
MIXING
Add 1 kg of cement to 1 kg of TEC COOLITE. Always ensure batch measurements are accurate and water is clean. A forced mixing with a paddle mixer shall be done combining TEC COOLITE and Grey Cement for 3 minutes continuously. The main purpose is to coat each and every particle of TEC COOLITE with the cement slurry.
COVERAGE
For an area of 10m2
APPLICATION
- Clean the surface
- Apply two coats of water proofing coating with TEC WAVE 2000 (Refer separate product broucher for application process)
- Spread the mixed TEC COOLITE mix over the roof slab maintaining the required slope.
- Spread a bed mortor of TEC PLAST 24 and lay TEC CHILL – Thermal insulation Tiles.
PROPERTIES
| THICKNESS | QUANTITY REQUIRED |
|---|---|
| 25 mm | 50 kgs |
| 50 mm | 85 kgs |
| 75 mm | 125 kgs |
| 100 mm | 150 kgs |
| 125 mm | 180 kgs |
Packaging
Available in 15 kg HDPE bags
OTHER PRODUCTS
Techny manufactures lot more range of other products for construction and repair applications. They include admixtures for concrete, mortars, block making etc, waterproof and damp proof coating systems, Repair and rehabilitations products, Grouts and Anchors, Protective, Decorative and Corrosion prevention coatings, Epoxy Flooring systems, Industrial flooring systems and Tiling aids. Separate Product brochures are available for these.
Every reasonable precaution is taken in the manufacture of the Techny products to ensure that they comply with high standards of quality. The recommendations and properties of the products are based upon what is believed to be the most reliable information available and are not intended as recommendations which infringe other patents. Although all Techny products are subject to rigid quality tests, no specific guarantee can be given, because results depend not only on quality but also on other factors beyond our control. We therefore welcome consultation in the event of doubt about application performance etc but do not accept any liability either directly or indirectly arising from the use of the products whether used as per its specifications or advice or otherwise. All transactions shall be subject to our terms of sale, delivery and payment. The leaflet supercedes the previous one and any new issue may take place without notice to supercede this edition as and when it becomes necessary.
TECHNICAL DATA SHEET
PUBLISHED MARCH 2012
