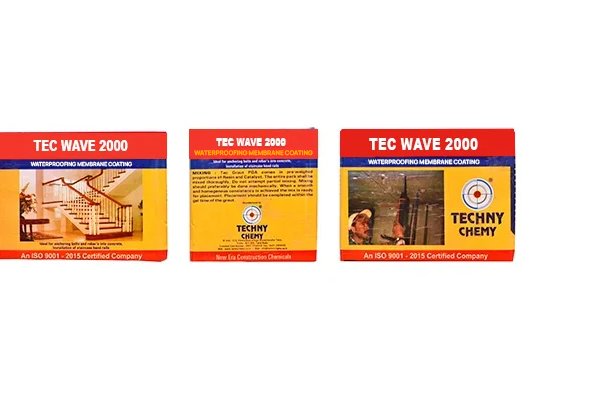

TEC WAVE 2000
TEC WAVE 2000
WATERPROOFING MEMBRANE COATING
KEY BENEFITS AND FEATURES
- Outstanding compatibility with concrete and masonry.
- Dual advantage of allowing water vapour transmission from interiors while forming a flexible waterproof membrane for exteriors.
- Forms a strong bond with coated substrate.
- Ideal for potable water tanks.
- Forms a versatile membrane- single product solution for variety of applications.
USAGE
- Forms into a tough yet flexible waterproof barrier making it the product of choice variety of applications.
- Is ideally suited for waterproofing of Terrace, Roof Slabs, Sunken areas and Sunshades.
- Is very effective as a damp-proof coating for basements and below grade structures.
- Protects concrete and masonry against corrosive weather and atmospheric gases.
DIRECTIONS FOR USE
Surface Preparation
The surface should be sound, free from dirt, oils and greases. In case any concrete curing, membranes are used, should be removed by Wire brushing. Surface should be washed thoroughly to be free of fine dust.
Mixing
Pour Part-B Liquid into a clean metal drum add requisite quantity of water and start stirring. Add Part-A Powder gradually while stirring simultaneously- preferably with a slow speed drill to a lump free consistency. Mix only the required quantity that can be used within the pot life. Continue stirring while applying. Do not retemper with Part A, Part B or water.
Mixing Ratio
Part – A – Powder 20 Kgs
Part – B – Liquid 4 Parts
Water – 4 Parts
* Similar proportion for small pack
Application
The surface to be coated should be made damp without allowing water puddles. The mixed material should then be applied with a Short Bristled Brush in short strokes. The second coat should be applied perpendicular to the first coat when the first coat has attained tack free state. The two coats will result in an overall DFT of 1mm. Avoid application at temperatures above 40°C or below 10°C. TECR WAVE 2000 can also be applied by Trowelling for cases of high water heads and hydrostatic pressure. The screed thickness should not be less than 2mm. At temperatures around 30°C the drying time would be 4-6 hours.
Post Application
The membrane should be cured for a minimum period of 72 hours.
Technical Data
| Physical State | Part- A- Powder Part-B- Liquid |
|---|---|
| Maturation time at 30°C | 30-45 minutes. |
| Initial Cure | 24 hours |
| Final Cure | 7 days |
| Colour | Grey and off white |
| Coverage, for two coats on normal surfacer | 12-15 mm2 /for 24 kg pack |
PRECAUTIONS
Direct contact with skin or eyes should be avoided. Use of gloves, goggles and other protective gear is
mandatory. In case of accidental eye contact thorough water washing is advised. In case of contact with skin wash immediately
with soap and water and not with solvent. This should be followed up with professional medical assistance. Tec wave 200 is
flammable. No naked flames should be allowed near the work site. Enclosed spaces must be well ventilated. Smoking should be
strictly prevented at the job site.
Storage and Shelf life
TEC WAVE 200 must be store under cover, out of direct sunlight and protect from extremes of temperature. Shelf life is 12 months when stored as above. Failure to comply with the recommended storage conditions may result in premature deterioration of the product or packaging.
CLEANING
Tools and equipments should be cleaned with water when the mix is in uncured state. Cured material can only be removed mechanicaly
Packaging

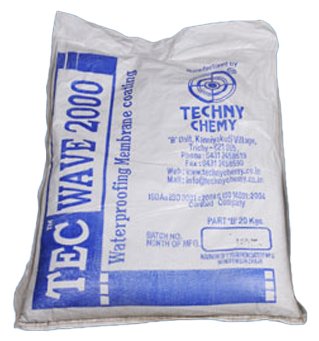

Available in 6Kg & 24Kg
OTHER PRODUCTS
Techny manufactures lot more range of other products for construction and repair applications. They include admixtures for concrete, mortars, block making etc, waterproof and damp proof coating systems, Repair and rehabilitations products, Grouts and Anchors, Protective, Decorative and Corrosion prevention coatings, Epoxy Flooring systems, Industrial flooring systems and Tiling aids. For more details refer Separate Product brochures.
Every reasonable precaution is taken in the manufacture of the Techny products to ensure that they comply with high standards of quality. The recommendations and properties of the products are based upon what is believed to be the most reliable information available and are not intended as recommendations which infringe other patents. Although all Techny products are subject to rigid quality tests, no specific guarantee can be given, because results depend not only on quality but also on other factors beyond our control. We therefore welcome consultation in the event of doubt about application performance etc but do not accept any liability either directly or indirectly arising from the use of the products whether used as per its specifications or advice or otherwise. All transactions shall be subject to our terms of sale, delivery and payment. The leaflet supercedes the previous one and any new issue may take place without notice to supercede this edition as and when it becomes necessary.
TECHNICAL DATA SHEET
ISSUED – February, 2010
